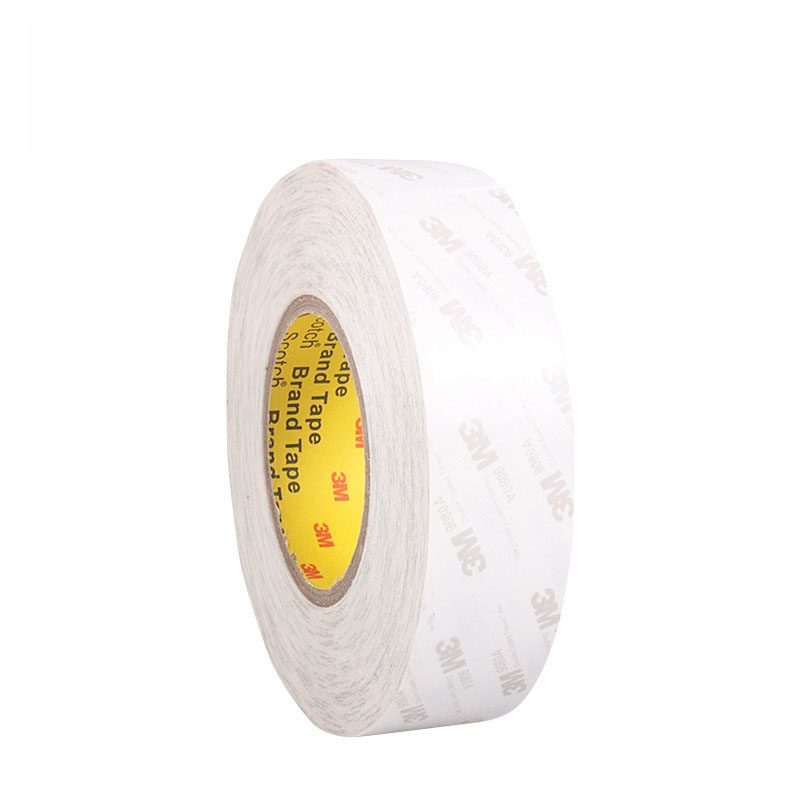

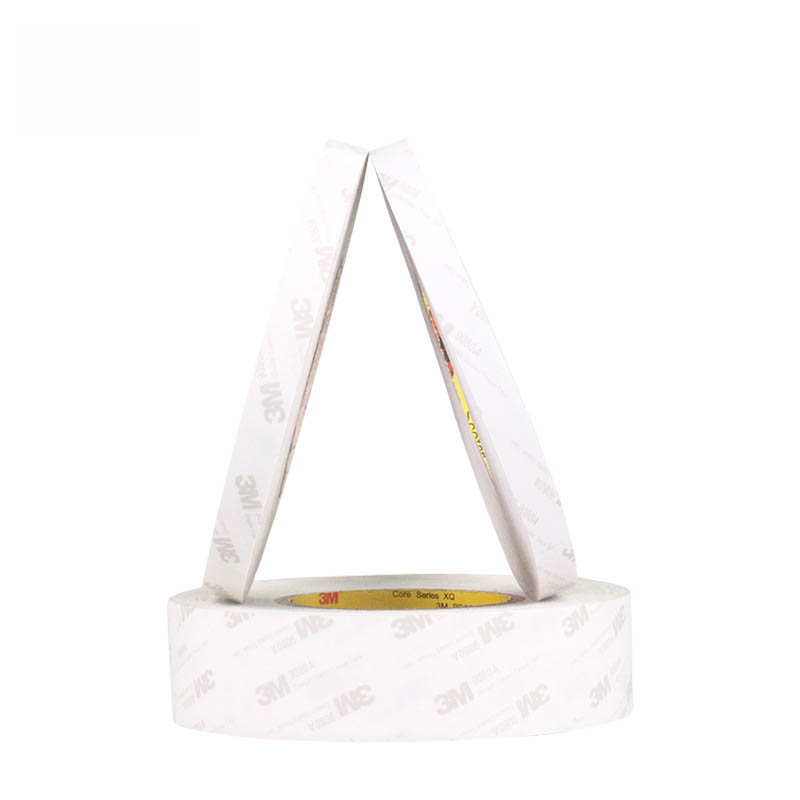

3m9080 3m9080A 3M9080HL Double Coated Tape is a high adhesion acrylic adhesive on both sides of a nonwoven tissue carrier. It has a very high level of initial tack and good adhesion to a wide variety of surfaces including low surface energy materials.
| Application | Battery Bonding, Battery Door Attachment, Camera Module Assembly, Case Assembly, Electronic Component Bonding, Foam Bonding, Foam Gasket Bonding, Logo Bonding, Memory Card Bonding, Module Bonding to PET Card, Rubber Feet Bonding, Speaker Module Assembly, Touchpad Assembly, Touchpad Bracket Assembly, Wire and Cable Clip Attachment |
| Application Category | Bonding |
| Backside Adhesive Type | Standard Acrylic |
| Carrier Color | Off-White |
| Carrier Material | Nonwoven |
| Faceside Adhesive Type | Standard Acrylic |
| Liner Color | White |
| Liner Thickness | 6.2 Milli-inch (mil) |
| Liner Thickness (metric) | 0.16 mm |
| Liner Type | Polycoated Kraft |
| Operating Temperature Range (Celsius) Long Term | (Days-Weeks) 90 Degrees C |
| Operating Temperature Range (Celsius) Short Term | (Minutes-Hours) 120 Degrees C |
| Product Series | 9080HL |
| Substrate | Foam, Glass, HSE Plastics, LSE Plastics, Metals |
| Total Tape Thickness without Liner | 6.2 mil |
| Total Tape Thickness without Liner (metric) | 0.16 mm |
